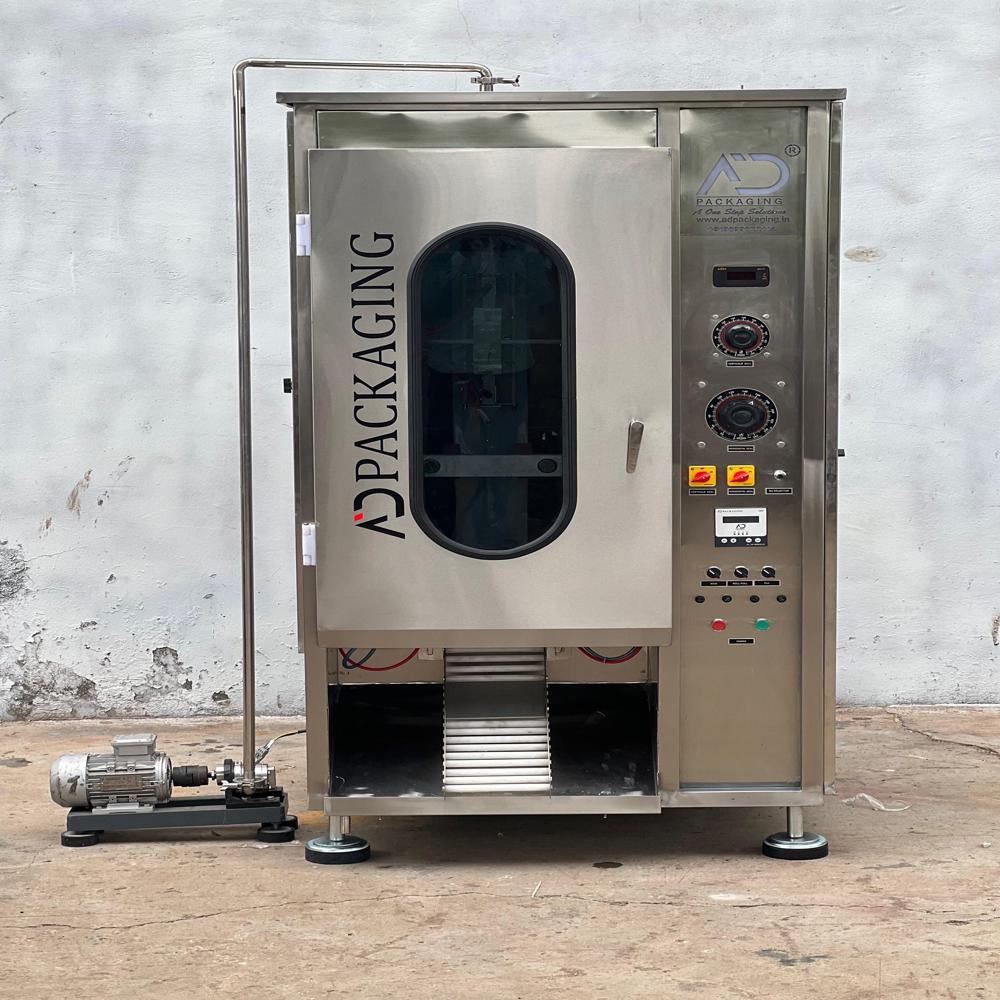

Ghee pouch packing machine

Model

:

AD Make Fully Automatic Liquid Pouch Packaging Machine

Description

:

Fully Automatic Normal Speed Single Head, Foam Fill & Seal Machine With PLC Control

Specification

:

Filling Range : 200ml To 1000ml(Depend On Material)

Filling Material : Liquid Filling

Speed : 14-18 Pouch Per Minute

Packing Material : LD/Bonding/Nylon Bonding/Prime Core

Seal Type : Center Seal

Filling System : Single Head

Feeding System : Pump With Motor

Accuracy In Volume : +/- 0.5 %

Film Thickness : 70-110 Microns

Film Width : 325 +/- 2 MM

Film Roll Weight : 10 20 KG

Material Of Machine : S.S 304/ M.S/ Aluminums

Gear Pump & Parts : S.S 316

Electric&Instrumention : PLC HMI / Control / VFD

Sealing System : Impulse Seal

Electrical Supply : Single Phase / Three Phase

Power Consumption : 5 Kw

Net Weight : 400 Kg (Approx.)

Gross Weight : 500 Kg. (Approx.)

Chiller : Extra

PLC : DELTA

HMI : DELTA

TRANSFORMER : GOPAL

SWITCH : L&T

RELAY : PLA

S.S.R : KRUSHI

CONTECTOR : SCHNEIDER

VFD DRIVE : DELTA

SMPS : SCHNEIDER

MOTER : HARMONIC // LHP

GEAR BOX WITH MOTOR FOR ROLL BRECK

GEAR BOX : ROBBOX

BEARING : SKF
